Airflow inspection
WARNING: This page is about a different variant/trim than selected.

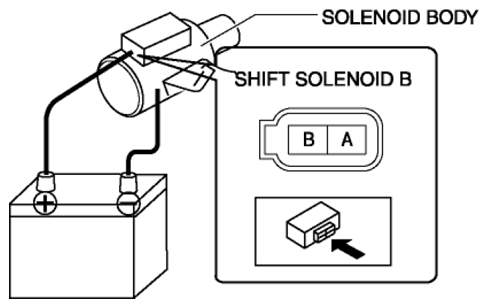

- Connect the shift solenoid B terminal B to the battery positive terminal, connect the battery negative terminal to solenoid body.
CAUTION:
- Do not apply impact to shift solenoid B.
- Do not damage the terminals.

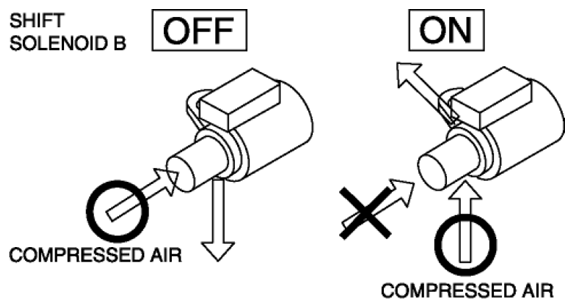

- Blow compressed air to inspect the condition of the airflow shown in the figure.
- If there is any malfunction, replace the shift solenoid B.
