Resistance inspection
WARNING: This page is about a different variant/trim than selected.

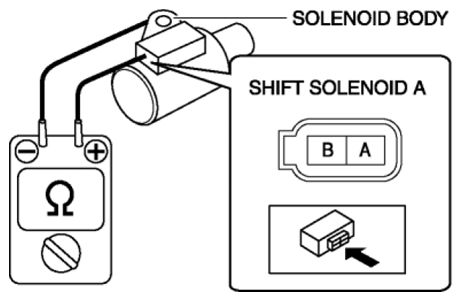

- Measure the resistance between shift solenoid A terminal B and solenoid body.
- If there is any malfunction, replace the shift solenoid A.
SHIFT SOLENOID A SPECIFICATION
| Ambient temperature (°C {°F}) |
Resistance (ohm) |
| 20 {68} |
11-15 |
