Operation inspection
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- Do not apply battery positive voltage to terminals for more than 3 s.
NOTE:
- Because the operation sound of the shift solenoid A is small, perform inspection in a quiet place.

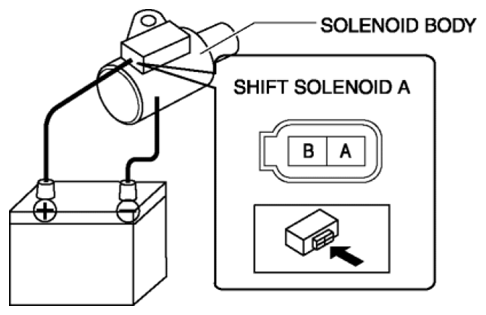

- Connect the shift solenoid A terminal B to the battery positive terminal, connect the battery negative terminal to solenoid body.
CAUTION:
- Do not apply impact to shift solenoid A.
- Do not damage the terminals.
- Verify that operating sound is heard from the shift solenoid A.
- If there is any malfunction, replace the shift solenoid A.
