Oil Seal (Manual Shaft) Replacement
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- Water or foreign material entering the connector can cause a poor connection or corrosion. Be sure not to allow water or foreign material on the connector when disconnecting.
- Disconnect the negative battery cable.
- Remove the fresh-air duct and air cleaner component as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Remove the TCM. (See TCM REMOVAL/INSTALLATION .)

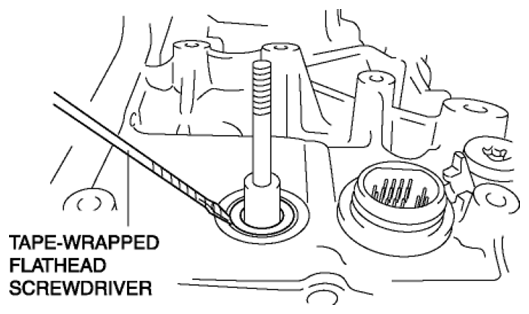

- Remove and discard the oil seal using a tape-wrapped flathead screwdriver.
CAUTION:
- Do not damage the transaxle case.
- Do not damage the manual shaft.

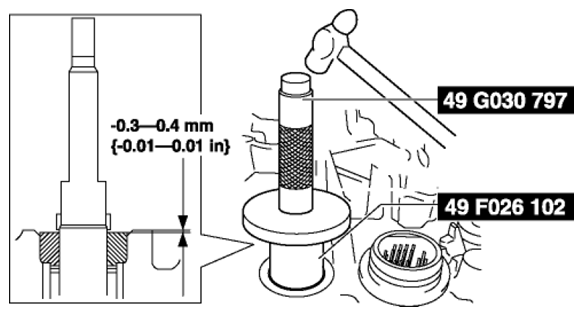

- Using the SSTs
and a hammer, tap a new oil seal so that the specified oil seal position is obtained.
CAUTION:
- Do not damage the oil seal.
- Install the TCM. (See TCM REMOVAL/INSTALLATION .)
- Install the fresh-air duct and air cleaner component as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Connect the negative battery cable.
- Perform the "Neutral Position Learning". (See TCM NEUTRAL POSITION LEARNING .)
