Seal Ring Disassembly Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the seal rings from the oil pump component.

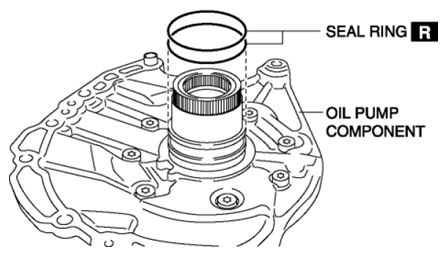

    Fig 1: Identifying Seal Rings And Oil Pump Component
    G08143266
