O-ring Assembly Note

WARNING: This page is about a different variant/trim than selected.
  1. Apply ATF to a new O-ring.
  2. Install the new O-ring to the oil pump component.

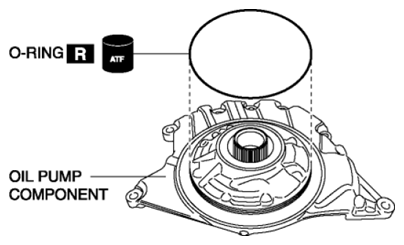

    Fig 1: Identifying O-Ring And Oil Pump Component
    G08143268
