Oil Pump Disassembly/Assembly: Notes
WARNING: This page is about a different variant/trim than selected.
NOTE:
- The following procedure is for replacement of the O-ring and seal rings only. Replace the transaxle if other repairs are necessary.

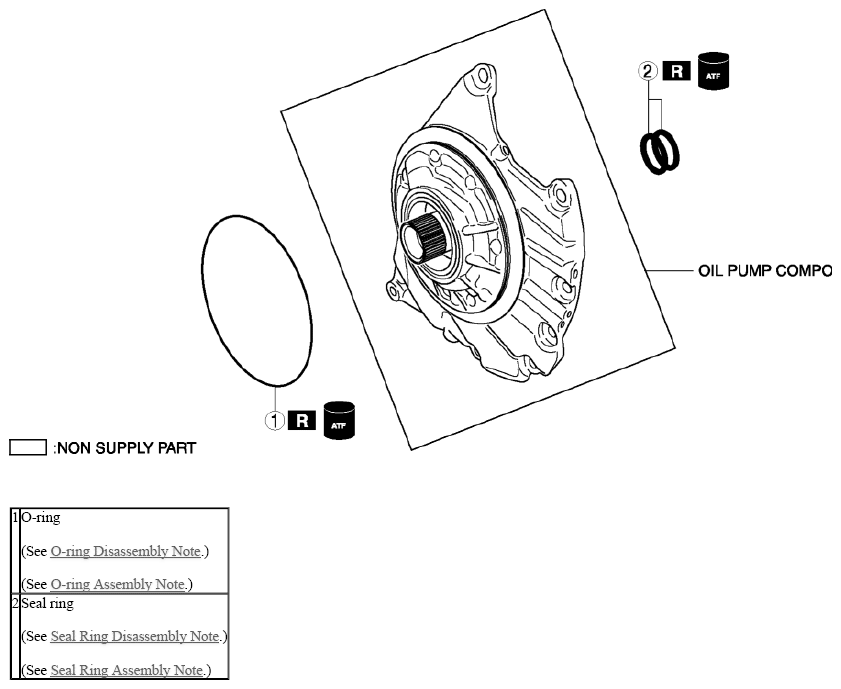

- Disassemble in the order indicated in the figure.
- Assemble in the reverse order of disassembly.
