Radiator side

WARNING: This page is about a different variant/trim than selected.

Install the oil hose to the position shown in the figure.

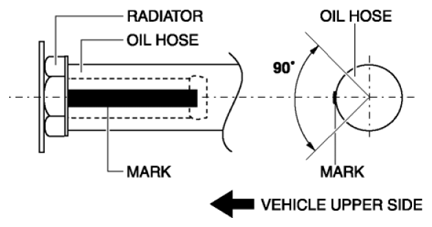

Fig 1: Identifying Oil Hose Installation Position (Radiator Side)
- Verify that the installation angle of the oil hose is within the range shown in the figure.
Install the hose clamp to the position shown in the figure.

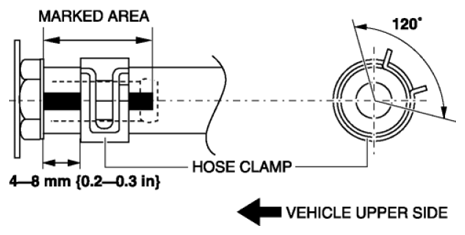

Fig 2: Identifying Hose Clamp Installation Position (Radiator Side)
- Verify that the hose clamp is within the marked area of the oil hose.
- Verify that the installation angle of the hose clamp is within the range shown in the figure.
NOTE:
- If the oil hose is to be re-used, install the hose clamp to the impression in the hose left by the previous installation. After installation, apply force to the hose clamp in the direction of the arrows to engage the hose clamp securely.

  Fig 3: Engaging Hose Clamp (Radiator Side)
Verify that the hose clamp does not interfere with surrounding the accessories.
