Oil pipe component (radiator side)

WARNING: This page is about a different variant/trim than selected.

Install the oil hose to the position shown in the figure.

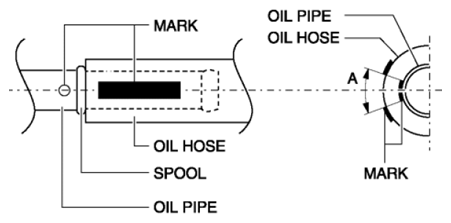

Fig 1: Identifying Oil Hose Installation Position (Oil Pipe Component - Radiator Side)
- Verify that the oil hose mark is within the A range.
Install the hose clamp to the position shown in the figure.

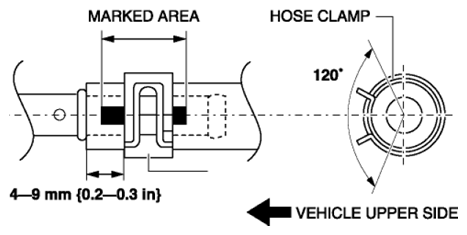

Fig 2: Identifying Hose Clamp Installation Position (Oil Pipe Component - Radiator Side)
- Verify that the hose clamp is within the marked area of the oil hose.
- Verify that the installation angle of the hose clamp is within the range shown in the figure.
NOTE:
- If the oil hose is to be re-used, install the hose clamp to the impression in the hose left by the previous installation. After installation, apply force to the hose clamp in the direction of the arrows to engage the hose clamp securely.

  Fig 3: Engaging Hose Clamp (Oil Pipe Component - Radiator Side)
Verify that the hose clamp does not interfere with surrounding the accessories.
