Operation inspection
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- Do not apply battery positive voltage to terminals for more than 3 s.
NOTE:
- Because the operation sound of the line pressure control solenoid is small, perform inspection in a quiet place.

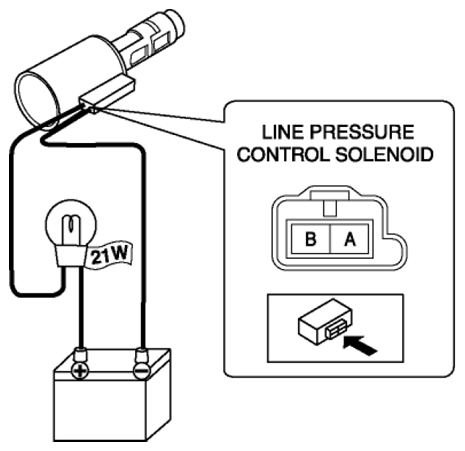

- Connect the positive battery terminal to terminal B of line pressure control solenoid via the 12-21 W
bulb and connect the negative battery terminal to terminal A of line pressure control solenoid.
CAUTION:
- Do not apply impact to line pressure control solenoid.
- Do not damage the terminals.
- Verify that operating sound is heard from the line pressure control solenoid.
- If there is any malfunction, replace the control valve body.
