Off-Vehicle Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Connect the input/turbine speed sensor terminal 2 to the battery positive terminal, connect the battery negative terminal to input/turbine speed sensor terminal 1 through an ammeter set to a resistance of 100 ohm  .

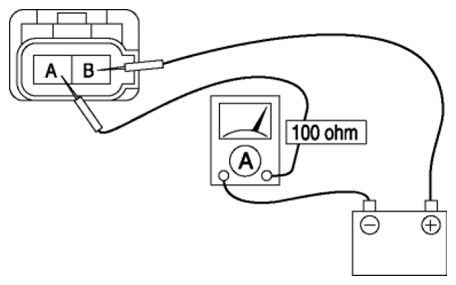

    Fig 1: Battery Negative Terminal Connected To Input/Turbine Speed Sensor Terminal
    G08142918
    NOTE:
    • Inspect with a tester that can indicate more than 10 megohms  and confirm that the value is more than 1 megohm  .
  2. Measure the current while waving a magnet back and forth over the top of the input/turbine speed sensor (less than 5 mm {0.2 in})  .

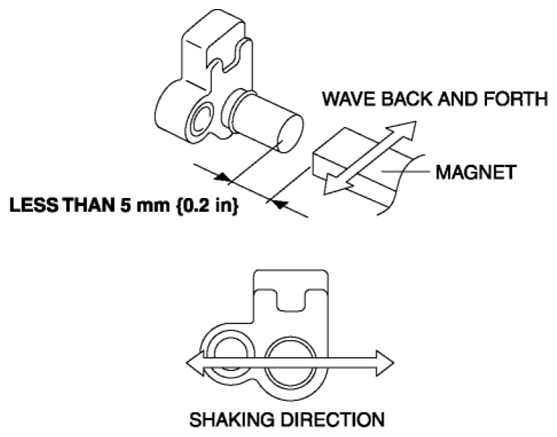

    Fig 2: Measuring Current By Waving Magnet Back And Forth Over Top Of Input/Turbine Speed Sensor
    G08142919
    • If there is any malfunction, replace the input/turbine speed sensor.
    INPUT/TURBINE SPEED SENSOR SPECIFICATION

    Signal Current (mA)
    High 12.0-16.0
    Low 4.0-8.0
