Transaxle case side

WARNING: This page is about a different variant/trim than selected.
  1. Remove the thrust washer from the front planetary gear component.

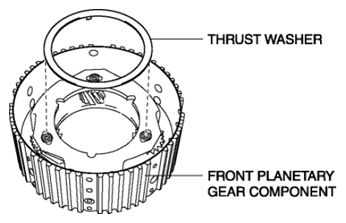

    Fig 1: Identifying Thrust Washer And Front Planetary Gear Component (Transaxle Case Side)
    G08143312
    NOTE:
    • In some cases, the thrust washer may be detached with the input shaft attached.
