Transaxle case side

WARNING: This page is about a different variant/trim than selected.
  1. Apply ATF to the new seal rings and sliding surface of the input shaft.
  2. Compress the new seal rings as shown in the figure. Then install the seal rings to the input shaft.

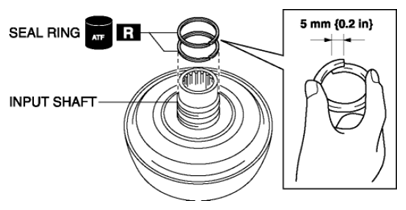

    Fig 1: Compressing Seal Rings (Transaxle Case Side)
    G08143316
    CAUTION:
    • Do not expand the seal rings too much.
    • Be careful not to shorten the seal rings too much, when installing the seal rings.
    NOTE:
    • Verity that seal rings rotate smoothly after installing them.
