Front Planetary Sun Gear, Thrust Bearing And Bearing Race Disassembly Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front planetary sun gear, thrust bearing and the bearing race from the input shaft.

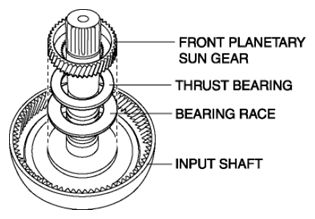

    Fig 1: Identifying Front Planetary Sun Gear, Thrust Bearing, Bearing Race And Input Shaft
    G08143313
    NOTE:
    • If it is difficult to remove the bearing race, pry it off gently using a flathead screwdriver.
