Bearing Race, Thrust Bearing And The Front Planetary Sun Gear Assembly Note

WARNING: This page is about a different variant/trim than selected.
  1. Apply ATF to the bearing race and thrust bearing.
  2. Install the bearing race and thrust bearing to the input shaft as shown in the figure.

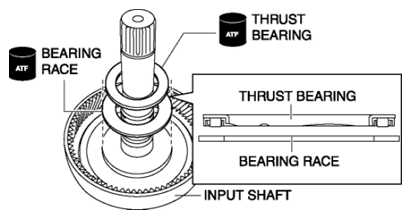

    Fig 1: Identifying Thrust Bearing, Input Shaft And Bearing Race
    G08143318
  3. Install the front planetary sun gear to the input shaft.

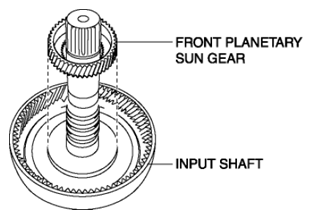

    Fig 2: Identifying Front Planetary Sun Gear And Input Shaft
    G08143319
