Drive Plate Installation Bolts Installation Note

WARNING: This page is about a different variant/trim than selected.

Remove the sealant from the bolt holes in the crankshaft and from the drive plate installation bolts.
Set the SST against the drive plate.

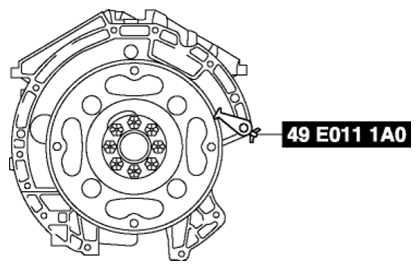

Fig 1: Setting SST Against Drive Plate
Tighten the new drive plate installation bolts uniformly in two or three steps in the order shown in the figure.

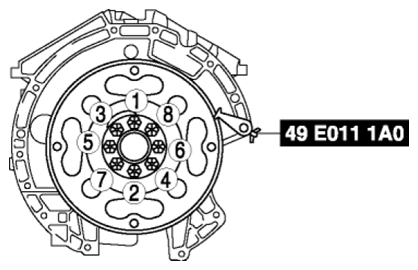

Fig 2: Identifying Drive Plate Installation Bolt Tightening Sequence

Tightening torque
- 73-87 N.m {7.5-8.8 kgf.m, 54-64 ft.lbf}
