Down Switch Inspection

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
  • Do not damage the terminals.
  1. Disconnect the selector lever component connector.
    1. Disconnect the negative battery cable.
    2. Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION .)
    3. Disconnect the selector lever component connector.

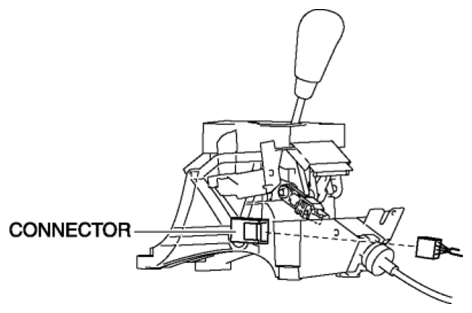

      Fig 1: Identifying Selector Lever Component Connector
      G08142908
  2. Measure the continuity between selector lever component terminals C and H.
    Fig 2: Identifying Selector Lever Component Connector Terminals
    G08142909
    DOWN SWITCH SPECIFICATION

    Test condition Continuity
    M (-) Continuity
    Except M (-) No continuity
