On-Vehicle Inspection
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery cable.
- Remove the fresh-air duct and air cleaner component as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Remove the TCM. (See TCM REMOVAL/INSTALLATION .)

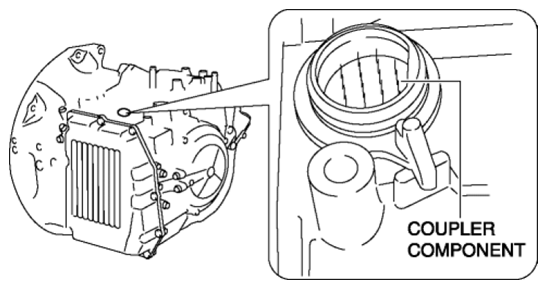

- Measure the coupler component continuity.
- If there is any malfunction, perform an off-vehicle inspection of coupler component. (See OFF-VEHICLE INSPECTION .)

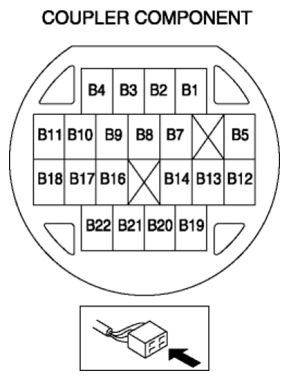

COUPLER COMPONENT SPECIFICATION
| Terminal | Continuity |
|---|---|
| B1-GND | No continuity |
| B2-GND | Continuity |
| B3-GND | No continuity |
| B4-GND | No continuity |
| B5-GND | Continuity |
| B7-GND | No continuity |
| B8-GND | No continuity |
| B9-GND | No continuity |
| B10-GND | No continuity |
| B11-GND | No continuity |
| B12-GND | No continuity |
| B13-GND | No continuity |
| B14-GND | No continuity |
| B16-GND | No continuity |
| B17-GND | No continuity |
| B18-GND | No continuity |
| B19-GND | No continuity |
| B20-GND | No continuity |
| B21-GND | No continuity |
| B22-GND | No continuity |
| B1-B3 | Continuity |
| B4-B9 | Continuity |
| B7-B8 | Continuity |
| B10-B11 | Continuity |
| B12-B13 | Continuity |
| B14-B22 | Continuity |
| B16-B21 | Continuity |
| B17-B18 | Continuity |
| B19-B20 | Continuity |
