VSS circuit
WARNING: This page is about a different variant/trim than selected.

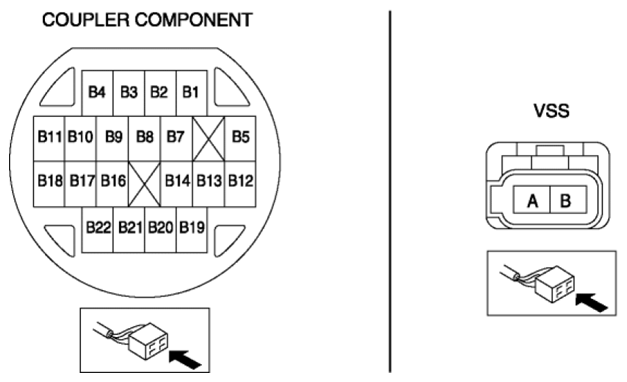

- Measure the continuity between coupler component terminal B19 and VSS terminal A.
- Measure the continuity between coupler component terminal B20 and VSS terminal B.
VSS SPECIFICATION
| Terminal | Continuity |
|---|---|
| Coupler component terminal B19-VSS terminal A | Continuity |
| Coupler component terminal B20-VSS terminal B | Continuity |
