Shift solenoid B circuit

WARNING: This page is about a different variant/trim than selected.

Measure the continuity between coupler component terminal B2 and shift solenoid B terminal B.

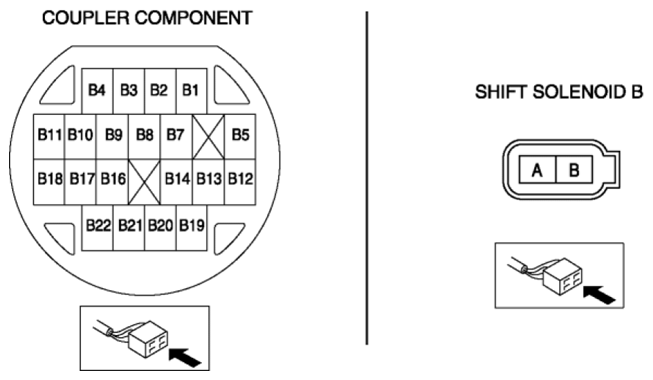

Fig 1: Identifying Coupler Component Terminal And Shift Solenoid B Connector Terminals

SHIFT SOLENOID B SPECIFICATION

Terminal	Continuity
Coupler component terminal B2-shift solenoid B terminal B	Continuity
