Shift solenoid A circuit

WARNING: This page is about a different variant/trim than selected.

Measure the continuity between coupler component terminal B5 and shift solenoid A terminal B.

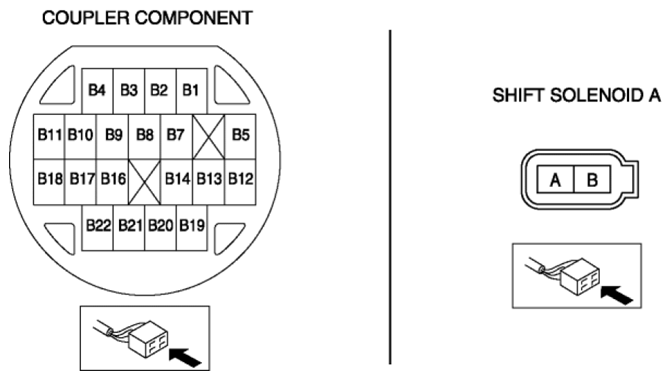

Fig 1: Identifying Coupler Component Terminal And Shift Solenoid A Connector Terminals

SHIFT SOLENOID A SPECIFICATION

Terminal	Continuity
Coupler component terminal B5-shift solenoid A terminal B	Continuity
