Breather Component Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery cable.
  2. Remove the battery. (See BATTERY REMOVAL/INSTALLATION [MZI 3.7 V6] .)
  3. Remove the battery tray. (See BATTERY REMOVAL/INSTALLATION [MZI 3.7 V6] .)
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.

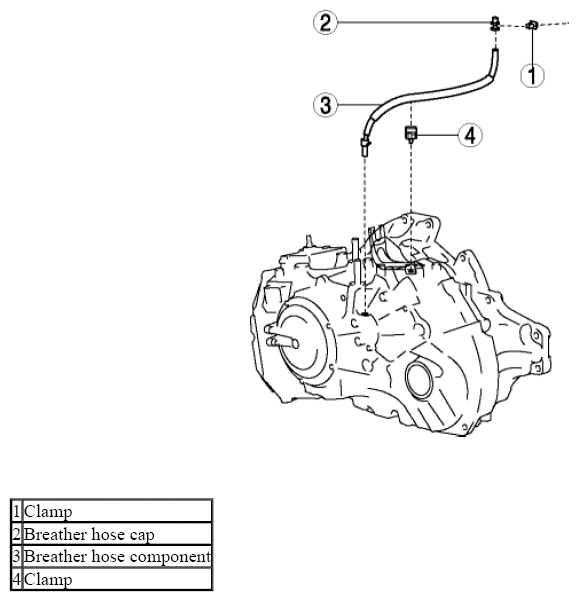

    Fig 1: Identifying Breather Hose Components And Clamps
    G08143111
