Transaxle Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Adjust the SST  to tilt the engine to the transaxle side.

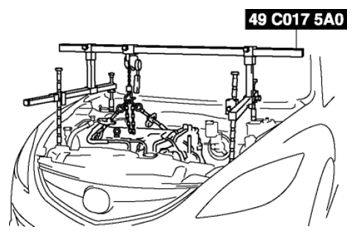

    Fig 1: Adjusting SST
    G08143222
  2. Support the transaxle on a jack.
    Fig 2: Supporting Transaxle On Jack
    G08143223
  3. Remove the transaxle mounting bolts and bracket.

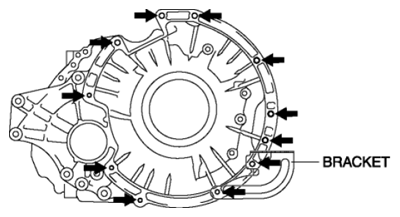

    Fig 3: Locating Transaxle Mounting Bolts And Bracket
    G08143224
  4. Remove the transaxle.
