Transaxle Installation Note

WARNING: This page is about a different variant/trim than selected.

Set the transaxle on a jack and lift it.

Fig 1: Setting Transaxle On Jack
Rotate the drive plate so that the logo mark faces upward.

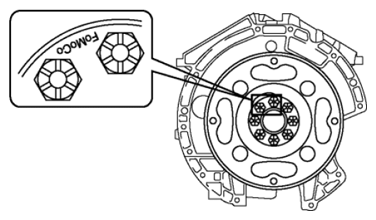

Fig 2: Identifying Drive Plate Logo With Upward Face
Rotate the torque converter so that the mark faces upward.

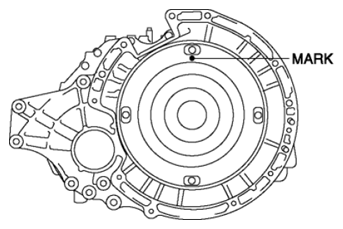

Fig 3: Identifying Mark On Torque Converter
Verify that the torque converter stud bolts are inserted into the drive plate bolt holes from the service hole.

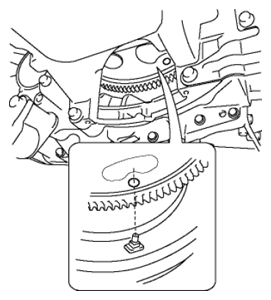

Fig 4: Identifying Torque Converter Stud Bolt
CAUTION:
- Verify that the torque converter stud bolts are inserted into the drive plate bolt holes, and install the transaxle installation bolts. Otherwise, the drive plate could be damaged.
Install the transaxle mounting bolts and bracket.

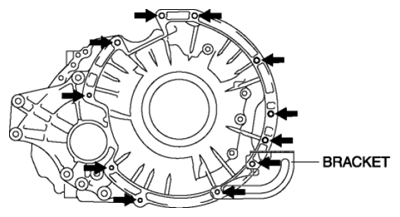

Fig 5: Locating Transaxle Mounting Bolts And Bracket

Tightening torque
- 38-52 N.m {3.9-5.3 kgf.m, 29-38 ft.lbf}
