Torque Converter Installation Nuts Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the cover as shown in the figure.

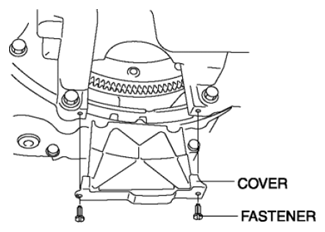

    Fig 1: Identifying Cover And Fasteners
    G08143219
  2. Hold the crankshaft pulley to prevent drive plate from rotating.
    Fig 2: Holding Crankshaft Pulley
    G08143220
  3. Remove the torque converter installation nuts.

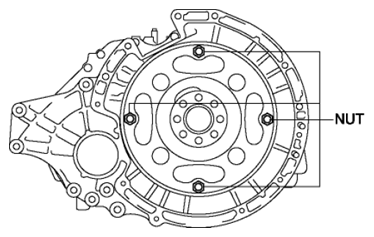

    Fig 3: Identifying Torque Converter Installation Nuts
    G08143221
