Torque Converter Installation Nuts Installation Note

WARNING: This page is about a different variant/trim than selected.

Hold the crankshaft pulley to prevent drive plate from rotating.

Fig 1: Holding Crankshaft Pulley
Tighten the torque converter installation nuts.

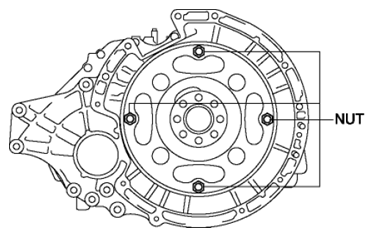

Fig 2: Identifying Torque Converter Installation Nuts
CAUTION:
- Loosely and equally tighten the torque converter nuts, then further tighten them to the specified tightening torque.
Tightening torque
- 41-54 N.m {4.2-5.5 kgf.m, 31-39 ft.lbf}
Install the cover as shown in the figure.

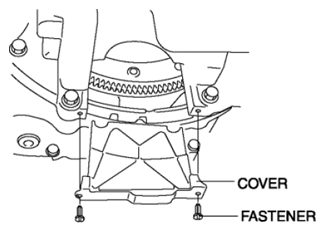

Fig 3: Identifying Cover And Fasteners
