No.4 Engine Mount Bracket Installation Note

WARNING: This page is about a different variant/trim than selected.

Install the No.4 engine mount bracket to the transaxle.
Temporarily tighten bolt A.

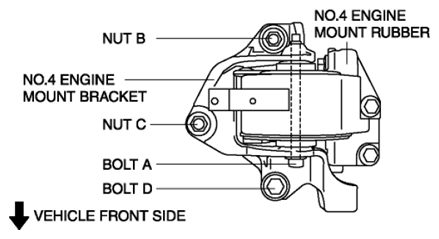

Fig 1: Identifying No.4 Engine Mount Bracket, No.4 Engine Mount Rubber, Nuts And Bolts
Temporarily tighten nuts B, C and bolt D.
Tighten nuts and bolt in the order of C→B→D.
Tighten bolt A.
Tightening torque
- Bolt A: 86-116 N.m {8.8-11 kgf.m, 64-85 ft.lbf}
- Nut B, C, Bolt D: 67-93 N.m {6.9-9.4 kgf.m, 50-68 ft.lbf}
