ATF Replenishment
WARNING: This page is about a different variant/trim than selected.
- Remove the fresh-air duct and air cleaner installation bolts and slide the fresh-air duct and air cleaner as a single unit to the vehicle front. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)

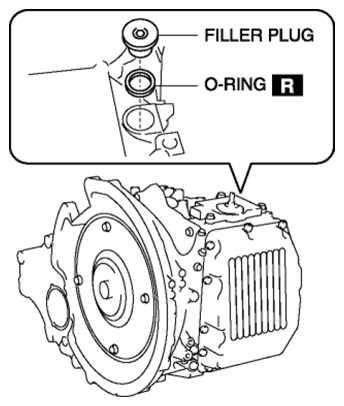

- Remove the filler plug and the O-ring.
- Add ATF from the filler plug hole.NOTE:
- If the transaxle is newly replaced, ATF replenishment is not necessary because ATF is charged to the maximum level.
ATF
- Mazda Genuine JWS3309
ATF capacity (approx. quantity)
- 6.6 L {7.0 US qt, 5.8 Imp qt}
ATF replenishment amount
- Replacing the oil hose: 0.3 L {0.3 US qt, 0.3 Imp qt}
- Replacing the torque converter: 2.6 L {2.7 US qt, 2.3 Imp qt}
- Replacing the drain plug, oil pipe component (transaxle side), control valve body cover and control valve body: 6.1 L {6.4 US qt, 5.4 Imp qt}
- Disassembling/assembling the transaxle: 6.1 L {6.4 US qt, 5.4 Imp qt}
- If the transaxle is newly replaced, ATF replenishment is not necessary because ATF is charged to the maximum level.
- Temporarily tighten the filler plug reusing the O-ring.
- Go to "ATF Level Adjustment". (See ATF LEVEL ADJUSTMENT .)
