No-load Test
WARNING: This page is about a different variant/trim than selected.
- Verify that the battery is fully charged.

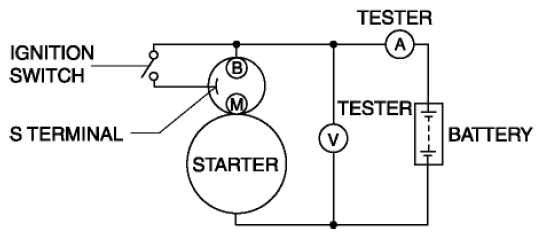

- Connect the starter, battery, and a tester as shown in the figure.
- Operate the starter and verify that it rotates smoothly.
- If the starter does not rotate smoothly, inspect the starter unit.
- Measure the voltage and current while the starter is operating.
- If not within specification, replace the starter.
Starter no-load test voltage
- 11 V
Starter no-load test current
- 90 A or less
- If not within specification, replace the starter.
