Quick Diagnosis Chart

WARNING: This page is about a different variant/trim than selected.

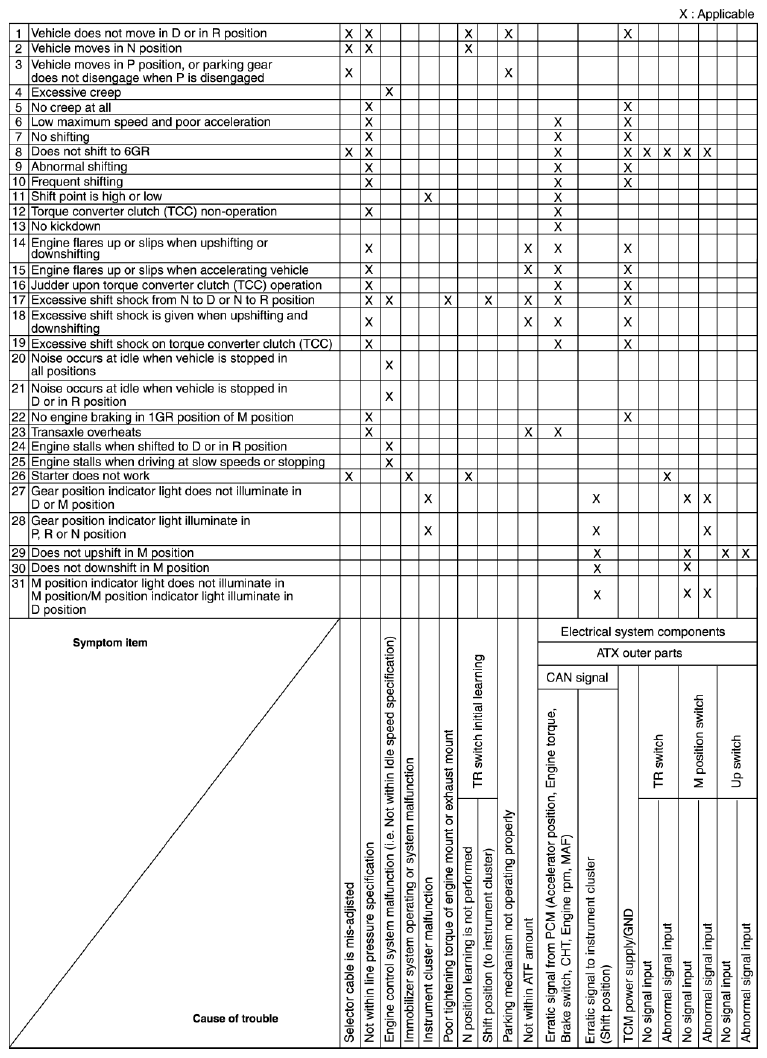

Fig 1: Quick Diagnosis Chart - AY6A-EL (1 Of 3)
G08142636

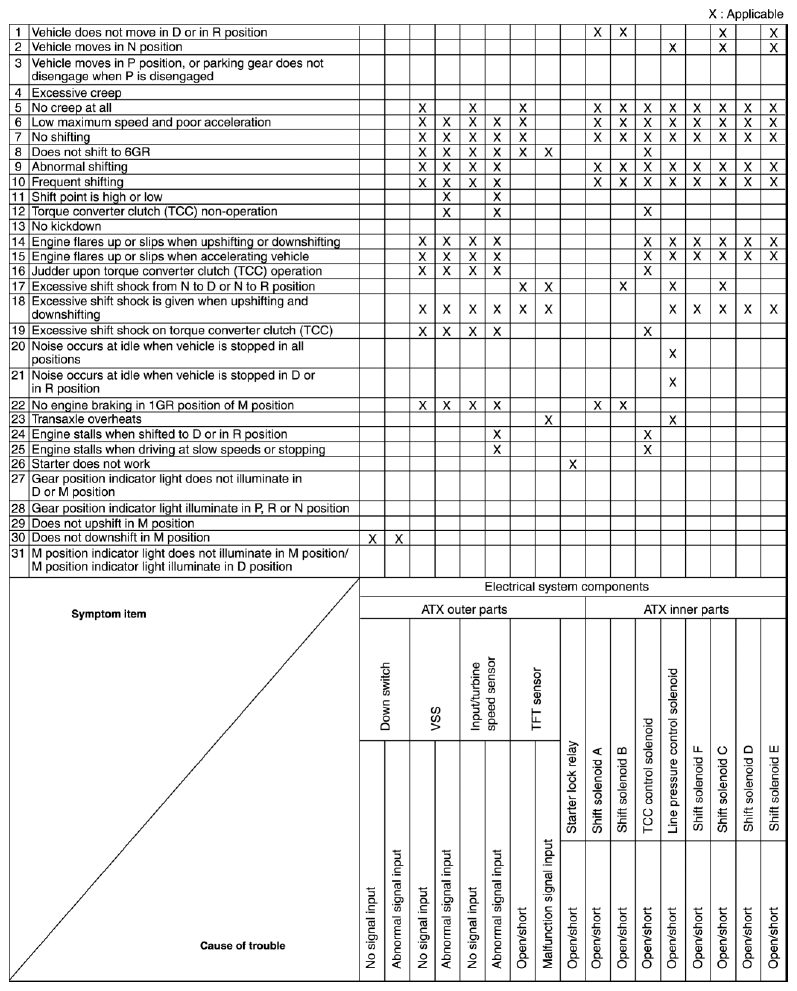

Fig 2: Quick Diagnosis Chart - AY6A-EL (2 Of 3)
G08142637

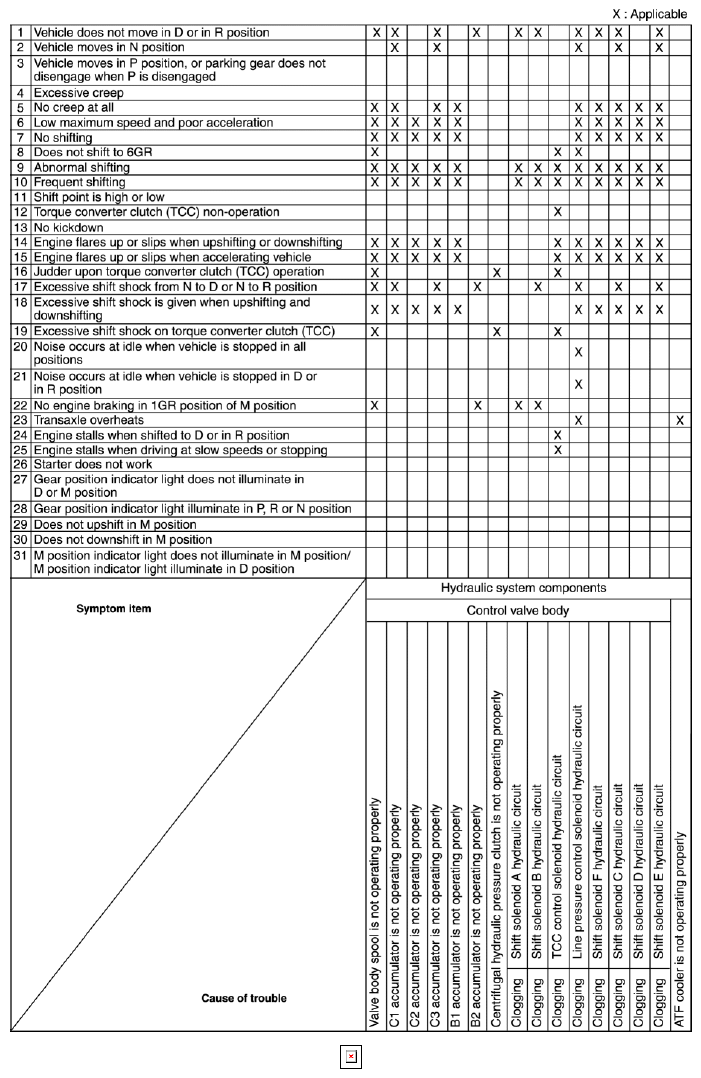

Fig 3: Quick Diagnosis Chart - AY6A-EL (3 Of 3)
G08142638
