Clearing DTCs Procedure

WARNING: This page is about a different variant/trim than selected.

Connect the M-MDS(IDS) to the DLC-2.

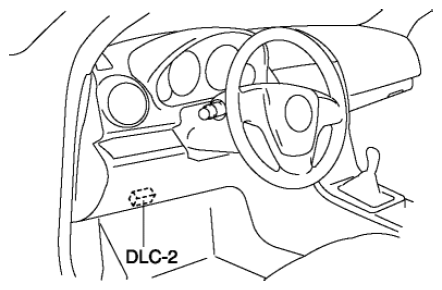

Fig 1: Identifying DLC-2 Location
After the vehicle is identified, select the following items from the initialization screen of the IDS.
1. Select "Self Test".
2. Select "Modules".
3. Select "TCM".
Verify the DTC according to the directions on the screen.
Press the clear button on the DTC screen to clear the DTC.
Switch the ignition OFF (LOCK).
Switch the ignition ON and wait for 5 s or more.
Perform DTC inspection. (See READING DTCS PROCEDURE .)
Verify that no DTCs are displayed.
