DTC P2763:00: Notes
WARNING: This page is about a different variant/trim than selected.
| DTC P2763:00 |
TCC control solenoid circuit high |
| DETECTION CONDITION |
- Conditions: TCM communication normal
- Circumstances: Short circuit between TCC control solenoid and power systems detected
- Time period: Determined after 5 consecutive times lasting 0.1 or more seconds
Diagnostic support note:
- The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle.
- The AT warning light illuminates.
- PENDING CODE is not available.
- FREEZE FRAME DATA is available.
- The DTC is stored in the TCM memory.
|
| FAIL-SAFE FUNCTION |
- Inhibits learning control
- Inhibits TCC control
- Inhibits slip control
- Inhibits adaptive shift control
|
| POSSIBLE CAUSE |

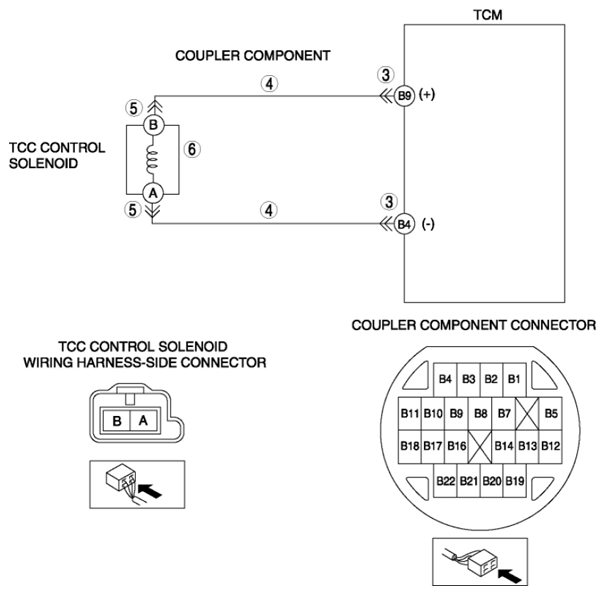

- Coupler component connector or terminal malfunction
- Short to power supply in wiring harness between TCC control solenoid terminal B and TCM terminal B9
- Short to power supply in wiring harness between TCC control solenoid terminal A and TCM terminal B4
- TCC control solenoid connector or terminal malfunction
- Solenoid valve malfunction
- TCM malfunction
|
|
|
