DTC P0986:00: Notes
WARNING: This page is about a different variant/trim than selected.
| DTC P0986:00 |
Shift solenoid E circuit high |
| DETECTION CONDITION |
- Conditions: TCM communication normal
- Circumstances: Short circuit between shift solenoid E and power systems detected
- Time period: Determined after 5 consecutive times lasting 0.1 or more seconds
Diagnostic support note:
- The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle.
- The AT warning light illuminates.
- PENDING CODE is not available.
- FREEZE FRAME DATA is available.
- The DTC is stored in the TCM memory.
|
| FAIL-SAFE FUNCTION |
|
| POSSIBLE CAUSE |
- Coupler component connector or terminal malfunction

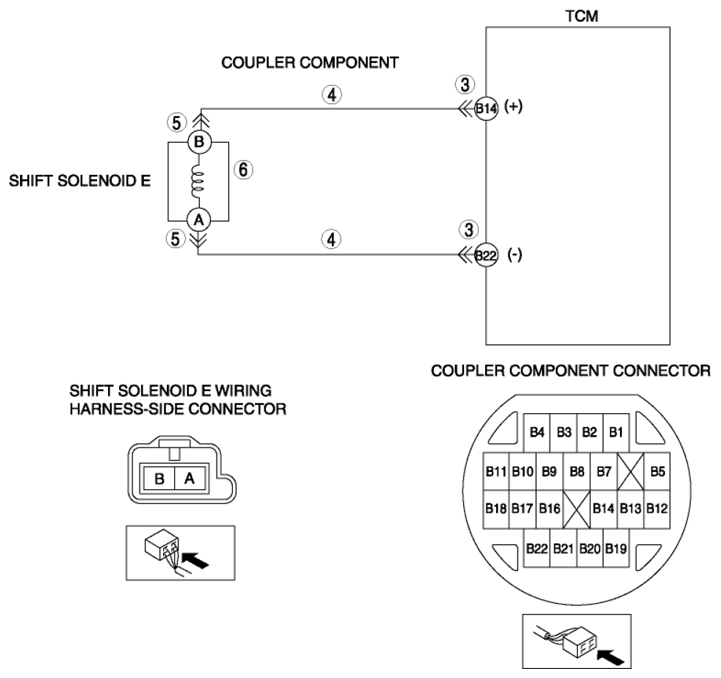

- Short to power supply in wiring harness between shift solenoid E terminal B and TCM terminal B14
- Short to power supply in wiring harness between shift solenoid E terminal A and TCM terminal B22
- Shift solenoid E connector or terminal malfunction
- Solenoid valve malfunction
- TCM malfunction
|
|
|
