DTC P0982:00: Notes
WARNING: This page is about a different variant/trim than selected.
| DTC P0982:00 |
Shift solenoid D circuit low |
| DETECTION CONDITION |
- Conditions: TCM communication normal
- Circumstances: Shift solenoid D system disconnection or short circuit to GND detected
- Time period: Determined after 5 consecutive times lasting 0.1 or more seconds
Diagnostic support note:
- The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle.
- The AT warning light illuminates.
- PENDING CODE is not available.
- FREEZE FRAME DATA is available.
- The DTC is stored in the TCM memory.
|
| FAIL-SAFE FUNCTION |
|

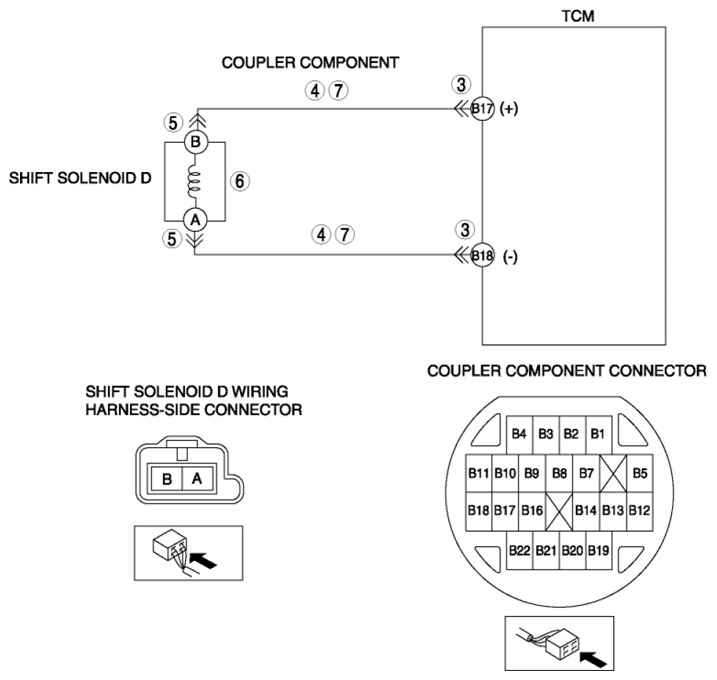

| POSSIBLE CAUSE |
- Coupler component connector or terminal malfunction
- Short to GND in wiring harness between shift solenoid D terminal B and TCM terminal B17
- Short to GND in wiring harness between shift solenoid D terminal A and TCM terminal B18
- Open circuit between shift solenoid D terminal B and TCM terminal B17
- Open circuit between shift solenoid D terminal A and TCM terminal B18
- Shift solenoid D connector or terminal malfunction
- Solenoid valve malfunction
- TCM malfunction
|
|
|
