DTC P0973:00: Notes

WARNING: This page is about a different variant/trim than selected.

DTC P0973:00	Shift solenoid A circuit low
DETECTION CONDITION	Conditions: TCM communication normal Circumstances: Short circuit between shift solenoid A and GND systems detected Time period: Determined after 5 times lasting 0.1 or more seconds Diagnostic support note: The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle. The AT warning light illuminates. PENDING CODE is not available. FREEZE FRAME DATA is available. The DTC is stored in the TCM memory.
FAIL-SAFE FUNCTION	Emergency mode 3

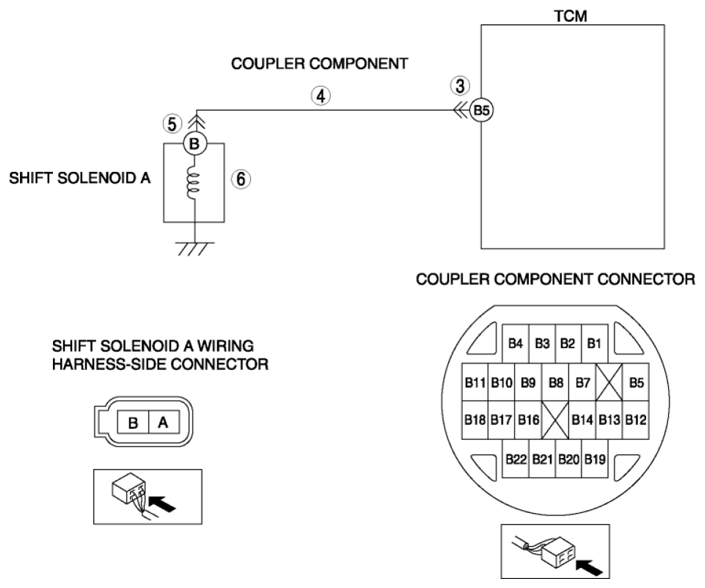

POSSIBLE CAUSE	Coupler component connector or terminal malfunction Short to GND in wiring harness between shift solenoid A terminal B and TCM terminal B5 Shift solenoid A connector or terminal malfunction Solenoid valve malfunction Shift solenoid A TCM malfunction
