DTC P0963:00: Notes
WARNING: This page is about a different variant/trim than selected.
| DTC P0963:00 |
Line pressure control solenoid circuit high |
| DETECTION CONDITION |
- Conditions: TCM communication normal
- Circumstances: Short circuit between line pressure control solenoid and power systems detected
- Time period: Determined after 5 consecutive times lasting 0.1 or more seconds
Diagnostic support note:
- The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle.
- The AT warning light illuminates.
- PENDING CODE is not available.
- FREEZE FRAME DATA is available.
- The DTC is stored in the TCM memory.
|
| FAIL-SAFE FUNCTION |
|

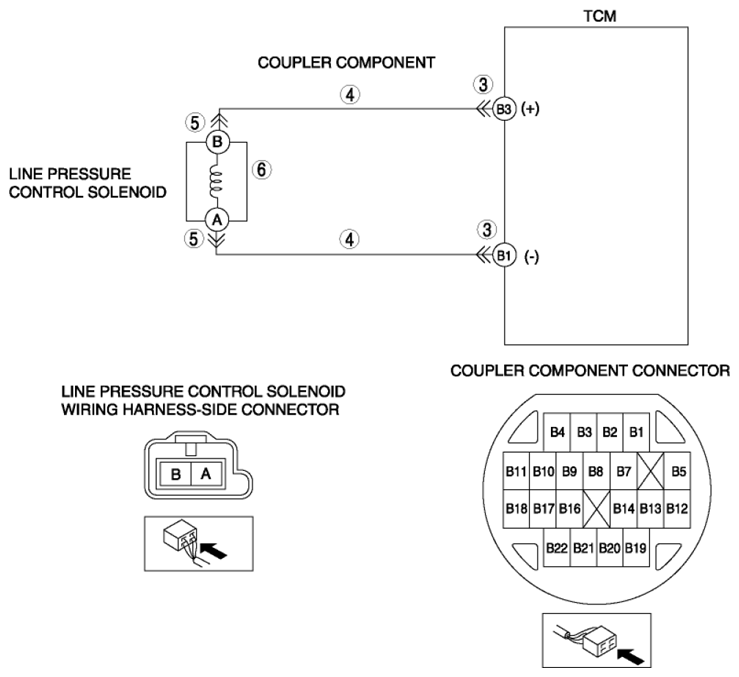

| POSSIBLE CAUSE |
- Coupler component connector or terminal malfunction
- Short to power supply in wiring harness between line pressure control solenoid terminal B and TCM terminal B3
- Short to power supply in wiring harness between line pressure control solenoid terminal A and TCM terminal B1
- Line pressure control solenoid connector or terminal malfunction
- Solenoid valve malfunction
- Line pressure control solenoid
- TCM malfunction
|
|
|
