DTC P0882:00: Notes
WARNING: This page is about a different variant/trim than selected.
| DTC P0882:00 |
TCM B+ low |
| DETECTION CONDITION |
- Conditions: Engine idling and TCM communication normal
- Circumstances: Ignition terminal voltage under 9V detected
- Time period: Determined after 20 times lasting 1 or more seconds
Diagnostic support note:
- The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle.
- The AT warning light illuminates.
- PENDING CODE is not available.
- FREEZE FRAME DATA is available.
- The DTC is stored in the TCM memory.
|
| FAIL-SAFE FUNCTION |
|

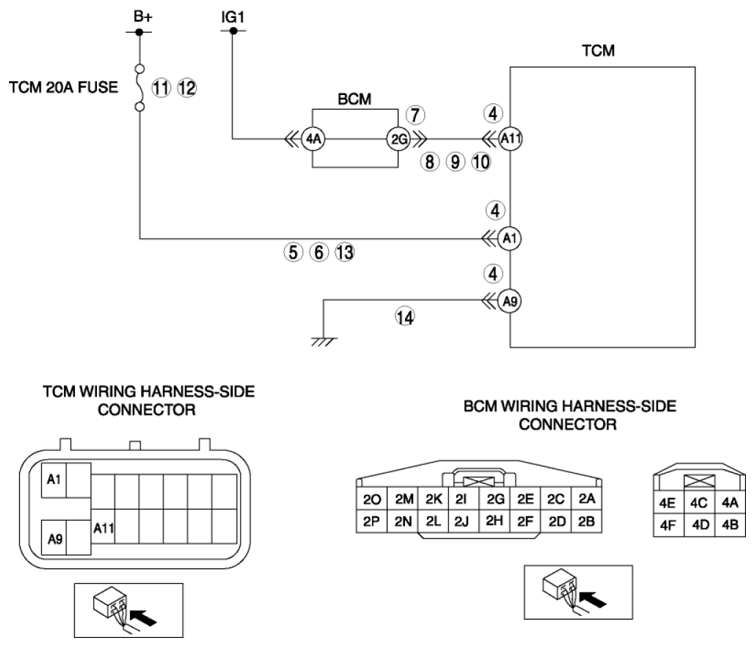

| POSSIBLE CAUSE |
- BCM malfunction
- TCM connector or terminal malfunction
- Short to GND in wiring harness between BCM terminal 2G and TCM terminal A11
- BCM connector or terminal malfunction
- Open circuit in wiring harness between BCM terminal 2G and TCM terminal A11
- Short to GND in wiring harness between battery positive terminal and TCM terminal A1
- Melt down TCM 20A fuse
- TCM 20A fuse connector or terminal malfunction
- Open circuit in wiring harness between battery positive terminal and TCM terminal A1
- Open circuit in wiring harness between TCM terminal A9 and body GND
- TCM malfunction
|
|
|
