DTC P0817:00: Notes
WARNING: This page is about a different variant/trim than selected.
| DTC P0817:00 |
Starter lock output signal circuit |
| DETECTION CONDITION |
- B+ short
- Conditions: Ignition switch ON, TCM communication normal, in D or R position
- Circumstances: 0V detected for start lock output voltage
- Time period: Determined after 2 times lasting 0.1 or more seconds
- GND short / open
- Conditions: Ignition switch ON, TCM communication normal, in P or N position
- Circumstances: 12V detected for start lock output voltage
- Time period: Determined after 2 times lasting 0.1 or more seconds
Diagnostic support note:
- The MIL does not illuminate.
- The AT warning light illuminates.
- PENDING CODE is not available.
- FREEZE FRAME DATA is available.
- The DTC is stored in the TCM memory.
|
| FAIL-SAFE FUNCTION |
- |
| POSSIBLE CAUSE |

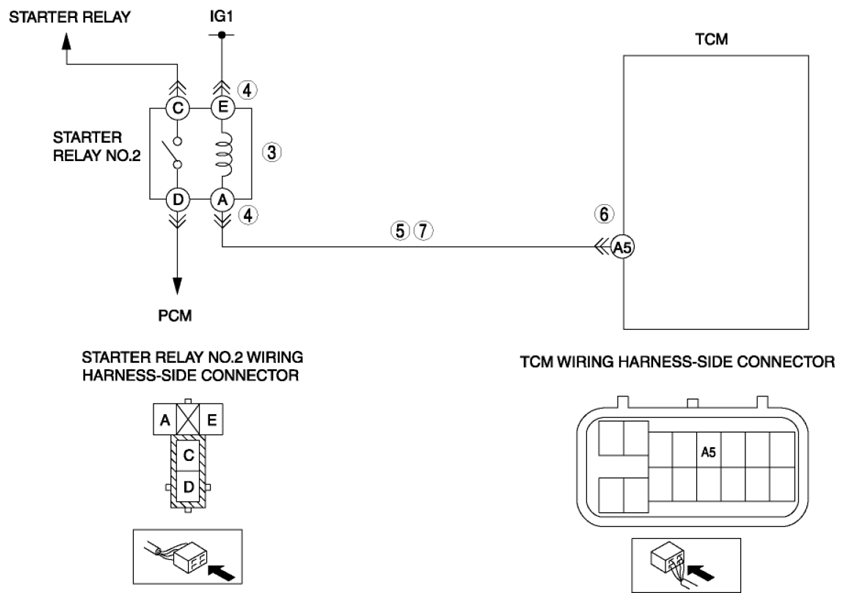

- Starter relay No.2 malfunction
- Starter relay No.2 connector or terminal malfunction
- Short to GND in wiring harness between starter relay No.2 terminal A and TCM terminal A5
- TCM connector or terminal malfunction
- Open circuit between starter relay No.2 terminal A and TCM terminal A5
- TCM malfunction
|
|
|
