DTC P0715:00: Notes
WARNING: This page is about a different variant/trim than selected.
| DTC P0715:00 |
Input/turbine speed sensor circuit |
| DETECTION CONDITION |
- Conditions: TCM communication normal
- Circumstances: Normal Input/turbine speed sensor signal not input
- Time period: Determined after 10 times lasting 0.1 or more seconds
Diagnostic support note:
- The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle.
- The AT warning light illuminates.
- PENDING CODE is not available.
- FREEZE FRAME DATA is available.
- The DTC is stored in the TCM memory.
|
| FAIL-SAFE FUNCTION |
|

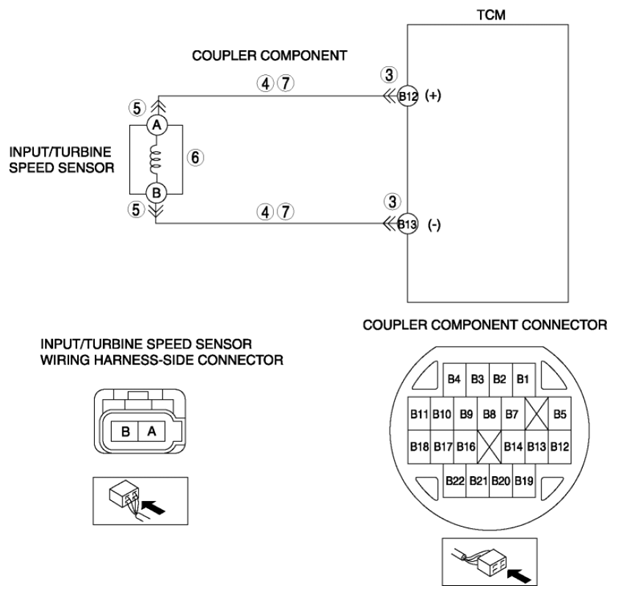

| POSSIBLE CAUSE |
- Coupler component connector or terminal malfunction
- Short to GND in wiring harness between input/turbine speed sensor terminal A and TCM terminal B12
- Short to GND in wiring harness between input/turbine speed sensor terminal B and TCM terminal B13
- Input/turbine speed sensor connector or terminal malfunction
- Input/turbine speed sensor malfunction
- Open circuit between input/turbine speed sensor terminal A and TCM terminal B12
- Open circuit between input/turbine speed sensor terminal B and TCM terminal B13
- TCM malfunction
|
|
|
