DTC P0713:00: Notes
WARNING: This page is about a different variant/trim than selected.
| DTC P0713:00 |
TFT sensor circuit high |
| DETECTION CONDITION |
- Conditions: Engine warmed-up and running, TCM communication normal
- Circumstances: ATF temperature of below -55 °C {-67 °F} detected
- Time period: Determined after 12 times lasting 1 or more seconds
Diagnostic support note:
- The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle.
- The AT warning light illuminates.
- PENDING CODE is not available.
- FREEZE FRAME DATA is available.
- The DTC is stored in the TCM memory.
|
| FAIL-SAFE FUNCTION |
- Inhibits learning control
- Inhibits slip control
- Fixes ATF temperature value at 80 °C {176 °F}
|

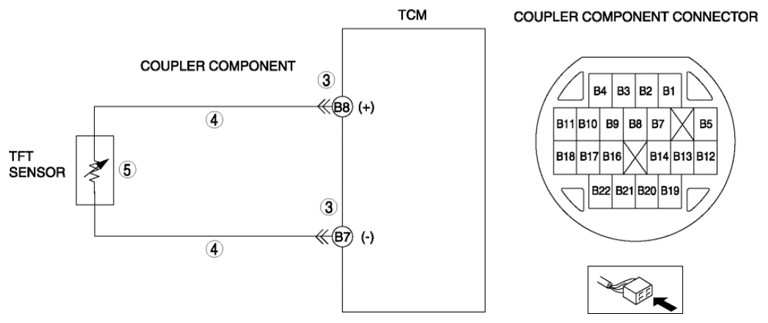

| POSSIBLE CAUSE |
- Coupler component connector or terminal malfunction
- Open circuit in wiring harness between TFT sensor and TCM terminal B8
- Open circuit in wiring harness between TFT sensor and TCM terminal B7
- TFT sensor malfunction
- TCM malfunction
|
|
|
