Intake Manifold Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel distributor and fuel injector as a single unit. (See FUEL INJECTOR REMOVAL/INSTALLATION .)
  2. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
  3. Disconnect the upper radiator hose.

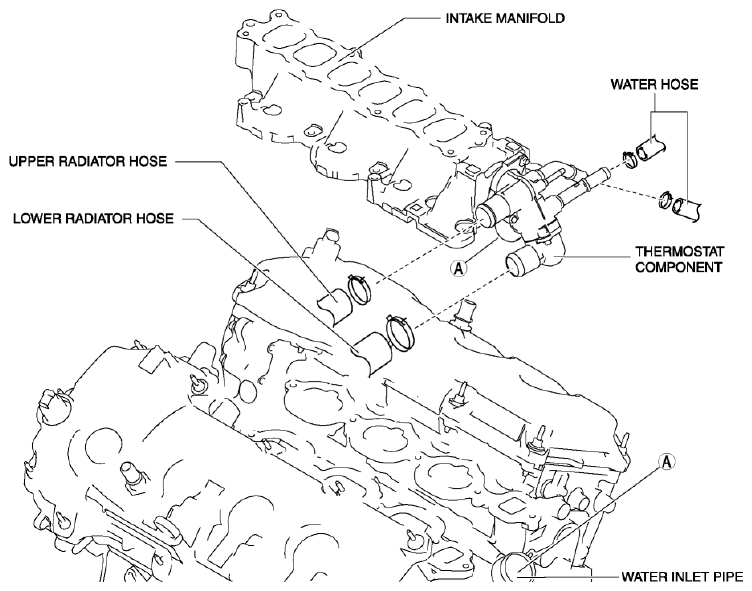

    Fig 1: Identifying Upper Radiator Hose, Lower Radiator Hose, Thermostat Component, Water Inlet Pipe And Intake Manifold
    G08140499
  4. Disconnect the lower radiator hose.
  5. Disconnect the two water hose from the thermostat component.
  6. Disconnect the thermostat component side of the water inlet pipe which is under the intake manifold.
  7. Remove the intake manifold and thermostat component as a single unit.
  8. Remove the thermostat component from the intake manifold.
    Fig 2: Removing Thermostat Component From Intake Manifold
    G08140500
