Intake Manifold Installation Note
WARNING: This page is about a different variant/trim than selected.

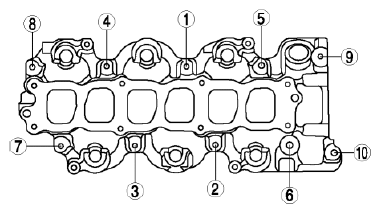

- Tighten the intake manifold installation bolts in the order shown.
Intake manifold installation bolt tightening torque
- 9-11 N.m {92-112 kgf.cm, 80-97 in.lbf}
