Accelerator Pedal Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI 3.7 V6] .)
  2. Remove in the order indicated in the table.

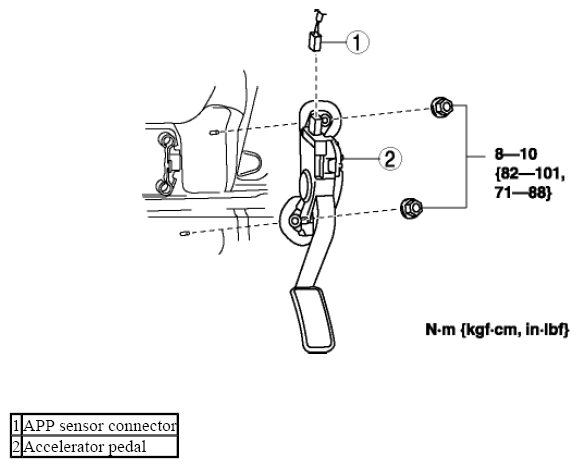

    Fig 1: Accelerator Pedal Replacement Components With Torque Specifications
    G08140506
  3. Install in the reverse order of removal.
