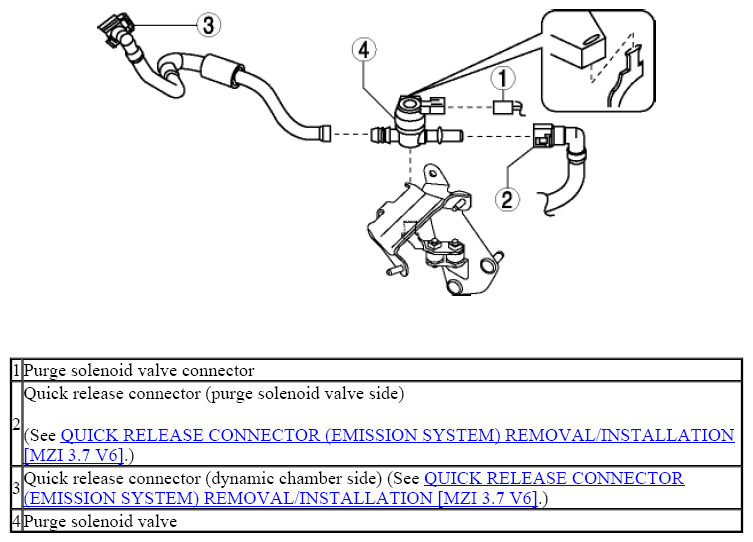

Purge Solenoid Valve Removal/Installation
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI 3.7 V6] .)
- Remove the PCM. (See PCM REMOVAL/INSTALLATION .)
- Remove the PCM bracket. (See PCM REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
