DTC P2017:00 [L5]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

DETECTION CONDITION & POSSIBLE CAUSES

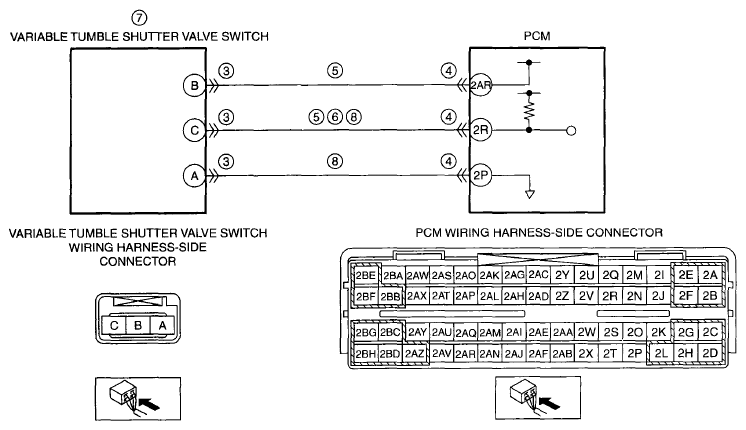

DTC P2017:00	Variable tumble shutter valve switch circuit high input
DETECTION CONDITION	The PCM monitors input voltage from SCV position sensor If input voltage is above 4.9 V for 4.9 s , the PCM determines that the SCV position sensor circuit has a malfunction. Diagnostic support note This is a continuous monitor (CCM) The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle. FREEZE FRAME DATA is available. The DTC is stored in the PCM memory
POSSIBLE CAUSE	Variable tumble shutter valve switch connector or terminal malfunction PCM connector or terminal malfunction Short circuit in variable tumble shutter valve switch power supply circuit and signal circuit each other Short to power supply in wiring harness between variable tumble shutter valve switch terminal C and PCM terminal 2R Variable tumble shutter valve switch malfunction Open circuit in wiring harness between variable tumble shutter valve switch terminal C and PCM terminal 2R Open circuit in wiring harness between variable tumble shutter valve switch terminal A and PCM terminal 2P PCM malfunction
Courtesy of MAZDA MOTORS CORP.

DTC P2017:00

Variable tumble shutter valve switch circuit high input

DETECTION CONDITION

The PCM monitors input voltage from SCV position sensor If input voltage is above 4.9 V for 4.9 s , the PCM determines that the SCV position sensor circuit has a malfunction.

Diagnostic support note

This is a continuous monitor (CCM)
The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
FREEZE FRAME DATA is available.
The DTC is stored in the PCM memory

POSSIBLE CAUSE

Variable tumble shutter valve switch connector or terminal malfunction
PCM connector or terminal malfunction
Short circuit in variable tumble shutter valve switch power supply circuit and signal circuit each other
Short to power supply in wiring harness between variable tumble shutter valve switch terminal C and PCM terminal 2R
Variable tumble shutter valve switch malfunction
Open circuit in wiring harness between variable tumble shutter valve switch terminal C and PCM terminal 2R
Open circuit in wiring harness between variable tumble shutter valve switch terminal A and PCM terminal 2P
PCM malfunction

Courtesy of MAZDA MOTORS CORP.
