DTC P0704:00 [L5]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

DETECTION CONDITION & POSSIBLE CAUSES

DTC P0704:00	CPP switch input circuit problem
DETECTION CONDITION	The PCM monitors changes in input voltage from the CPP switch. If the PCM does not detect the voltage changes while the vehicle runs with vehicle speed above 30 km/h {19 mph} and stops 8 times alternately, the PCM determines that the CPP switch circuit has a malfunction. Diagnostic support note This is a continuous monitor (CCM) The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle FREEZE FRAME DATA is available The DTC is stored in the PCM memory.

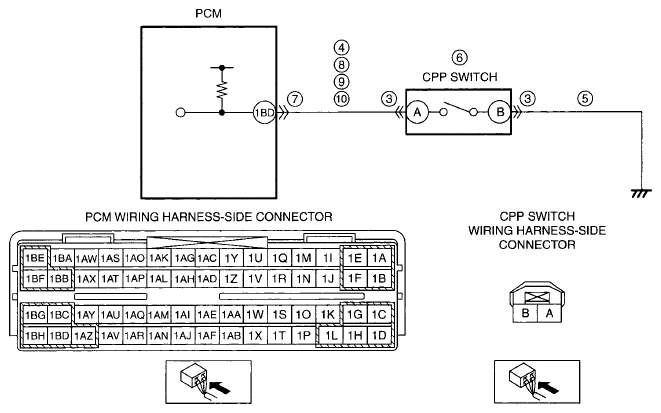

POSSIBLE CAUSE	CPP switch connector or terminal malfunction Open circuit in wiring harness between CPP switch terminal B and body ground CPP switch malfunction PCM connector or terminal malfunction Short to ground in wiring harness between CPP switch terminal A and PCM terminal 1BD Short to power supply in wiring harness between CPP switch terminal A and PCM terminal 1BD Open circuit in wiring harness between CPP switch terminal A and PCM terminal 1BD PCM malfunction
Courtesy of MAZDA MOTORS CORP.

DTC P0704:00

CPP switch input circuit problem

DETECTION CONDITION

The PCM monitors changes in input voltage from the CPP switch. If the PCM does not detect the voltage changes while the vehicle runs with vehicle speed above 30 km/h {19 mph} and stops 8 times alternately, the PCM determines that the CPP switch circuit has a malfunction.

Diagnostic support note

This is a continuous monitor (CCM)
The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM
PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle
FREEZE FRAME DATA is available
The DTC is stored in the PCM memory.

POSSIBLE CAUSE

CPP switch connector or terminal malfunction
Open circuit in wiring harness between CPP switch terminal B and body ground
CPP switch malfunction
PCM connector or terminal malfunction
Short to ground in wiring harness between CPP switch terminal A and PCM terminal 1BD
Short to power supply in wiring harness between CPP switch terminal A and PCM terminal 1BD
Open circuit in wiring harness between CPP switch terminal A and PCM terminal 1BD
PCM malfunction

Courtesy of MAZDA MOTORS CORP.
