DTC P0327:00 [L5]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSES
| DTC P0327:00 |
KS circuit low input |
| DETECTION CONDITION |
- The PCM monitors input signal from the KS when the engine is running. If the input voltage is below 0.2 V
the PCM determines that the KS circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
- FREEZE FRAME DATA is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- KS connector or terminal malfunction
- PCM connector or terminal malfunction

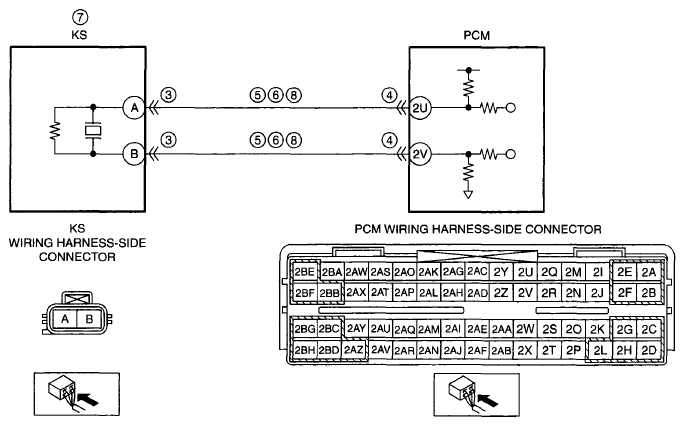

- Short to ground in wiring harness between KS terminal A and PCM terminal 2U
- Short to ground in wiring harness between KS terminal B and PCM terminal 2V
- Short circuit in KS circuits each other
- KS malfunction
- Open circuit in wiring harness between KS terminal A and PCM terminal 2U
- Open circuit in wiring harness between KS terminal B and PCM terminal 2V
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
