DTC P0222:00 [L5]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION & POSSIBLE CAUSES
| DTC P0222:00 |
TP sensor No. 2 circuit low input |
| DETECTION CONDITION |
- If the PCM detects TP sensor No 2 voltage is to be below 0.2 V
after switch the ignition to ON, the PCM determines that TP circuit has a malfunction
Diagnostic support note
- This is a continuous monitor (CCM)
- The MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle
- FREEZE FRAME DATA is available
- The DTC is stored in the PCM memory
|

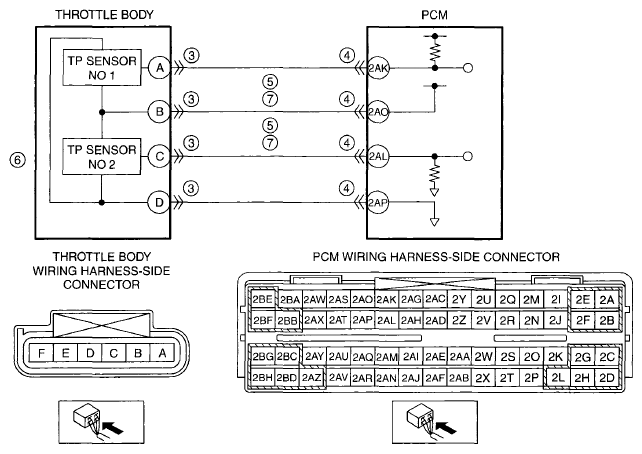

| POSSIBLE CAUSE |
- Throttle body connector or terminal malfunction
- PCM connector or terminal malfunction
- Short to ground in wiring harness between throttle body terminal B and PCM terminal 2AO
- Short to ground in wiring harness between throttle body terminal C and PCM terminal 2AL
- TP sensor No. 2 malfunction
- Open circuit in wiring harness between throttle body terminal B and PCM terminal 2AO
- Open circuit in wiring harness between throttle body terminal C and PCM terminal 2AL
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
