DTC P0107:00 [L5]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITIONS & POSSIBLE CAUSES
| DTC P0107:00 |
MAP sensor circuit low input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from the MAP sensor. If the input voltage is below 0.1 V
, the PCM determines that the MAP sensor circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
- FREEZE FRAME DATA is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- MAP sensor connector or terminal malfunction
- PCM connector or terminal malfunction

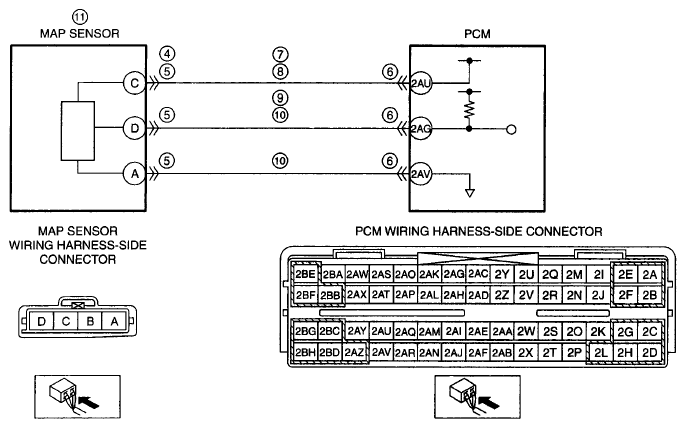

- Short to ground in wiring harness between MAP sensor terminal C and PCM terminal 2AU
- Open circuit in wiring harness between MAP sensor terminal C and PCM terminal 2AU
- Short to ground in wiring harness between MAP sensor terminal D and PCM terminal 2AG
- Short circuit in MAP sensor signal circuit and ground circuit each other
- MAP sensor malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
