Section 633 (On-Board Diagnostic (Engine Control System L5) (1 Of 5))
>>
Monitoring System And Control System Device Relationship Chart [L5]
Monitoring System And Control System Device Relationship Chart [L5]
WARNING:
This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

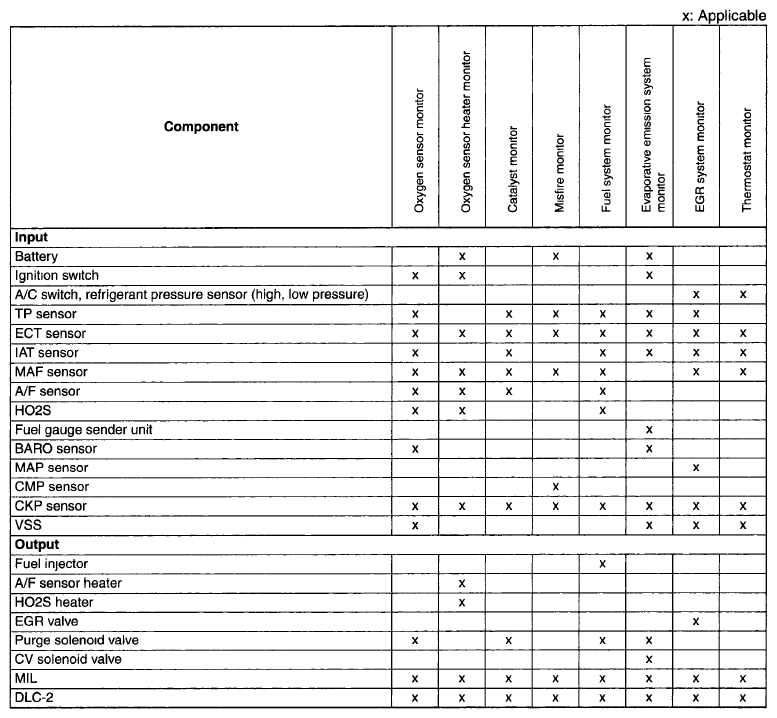

Fig 1: Monitoring System & Control System Device Relationship Chart [L5]
Courtesy of MAZDA MOTORS CORP.
